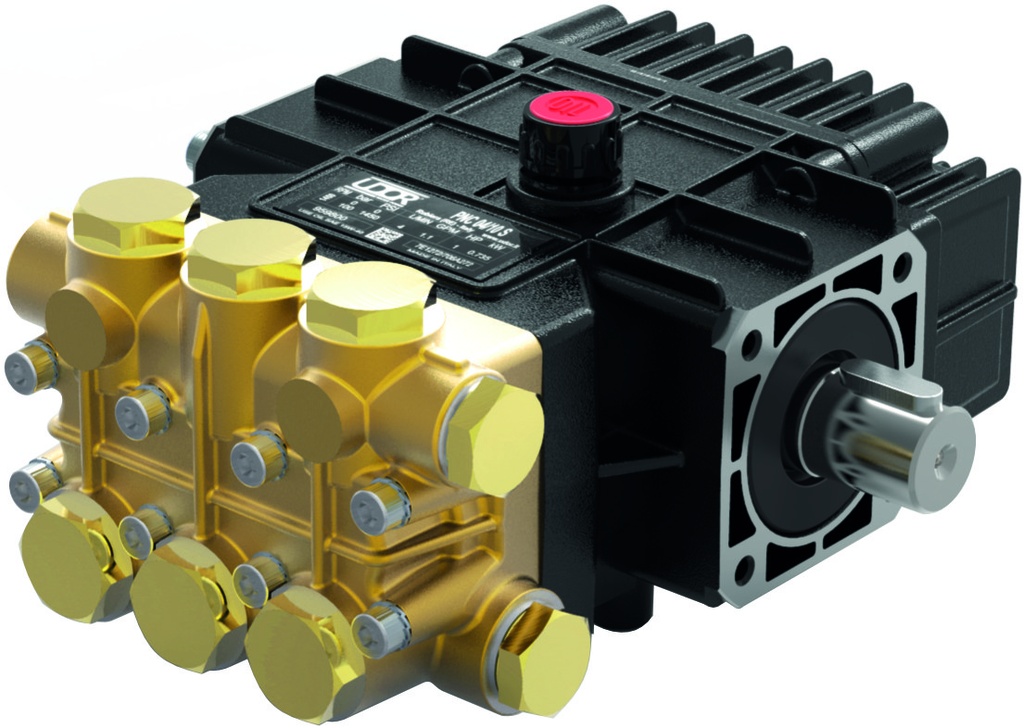

The UDOR PNC0911S is a compact, high-pressure triplex piston pump designed for demanding cleaning, spraying, and fluid transfer applications. Manufactured in Italy, this robust pump delivers up to 9 litres per minute at a maximum pressure of 110 bar (1,600 psi), making it ideal for car wash systems, agricultural spraying equipment, construction applications, and misting systems.

Built with durability in mind, the PN Series features three solid ceramic pistons, a forged reinforced brass pump head, and an aluminium die-cast crankcase with cataphoresis coating for enhanced corrosion resistance. The pump also incorporates a double sealing system, hardened steel crankshaft, and oversized roller bearings to provide dependable performance and extended service life in demanding environments.

Despite its powerful output, the PNC0911S maintains a compact footprint, making it suitable for installations where space is limited. Operating at 1450 RPM, it offers reliable and efficient performance for a wide range of professional applications.

Key Features

• Maximum flow rate of 9 LPM
• Maximum operating pressure of 110 bar (1,600 psi)
• Three solid ceramic pistons for durability and wear resistance
• Reinforced forged brass pump head
• Aluminium die-cast crankcase with corrosion-resistant coating
• Double sealing system for improved reliability
• Hardened steel crankshaft and oversized roller bearings
• Compact design suitable for confined installations
• Manufactured in Italy
