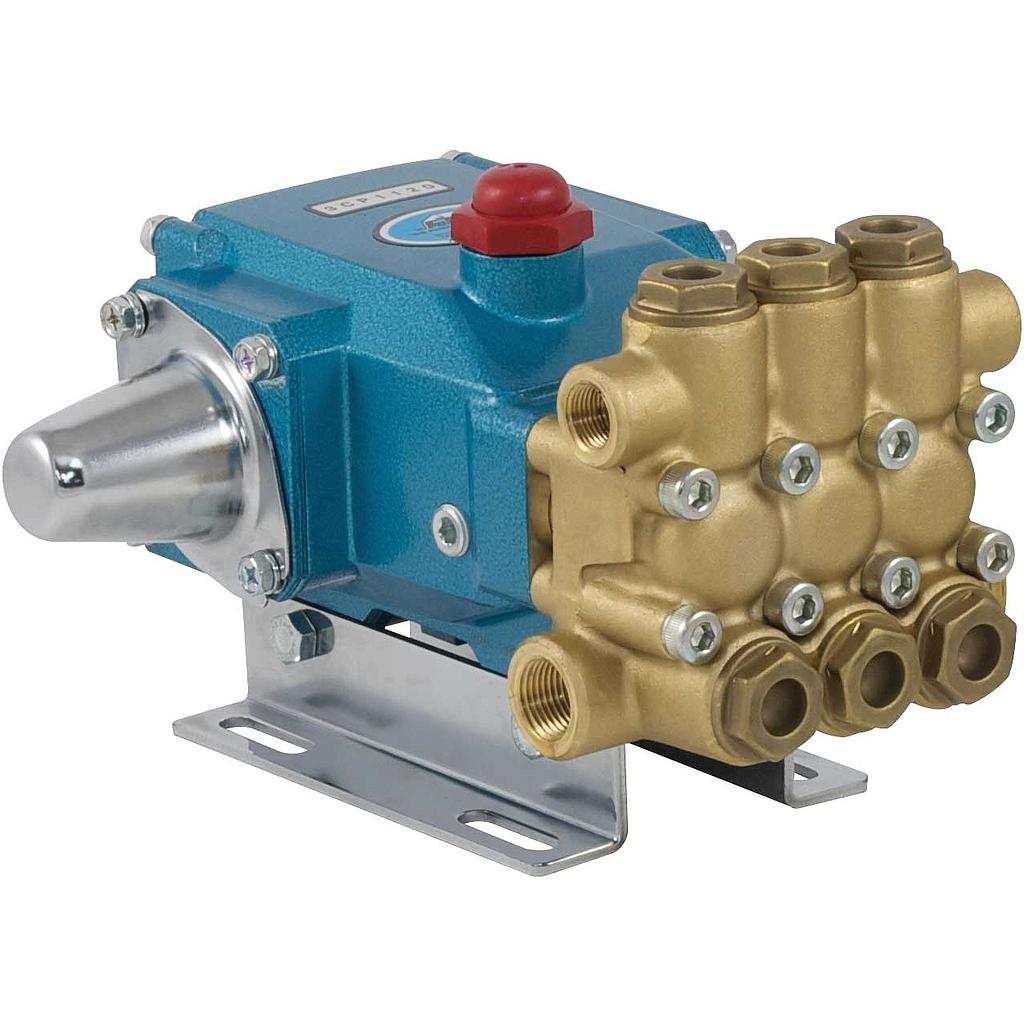

The CAT 3CP Series pumps are compact, high-performance triplex piston pumps designed for demanding cleaning and fluid transfer applications. Suitable for vehicle wash systems, pressure washers, site cleaning equipment and test rigs, these pumps deliver the renowned reliability and long service life that CAT Pumps are known for. All three models feature a compact footprint, a maximum working pressure of 150 bar, a durable triplex plunger design and cooled internal seals that help extend seal life whilst reducing pulsation for smoother operation.
Manufactured in Japan, the CAT 3CP range is ideal for OEM installations and replacement applications where dependable performance and low maintenance are essential. Each pump operates at 1,725 RPM and features a 1/2" female inlet, 3/8" female outlet and 16.5 mm shaft size. Please note that CAT pumps are supplied without oil and must be filled before first use.
Key Features
- Genuine CAT 3CP triplex plunger pumps
- Maximum operating pressure of 150 bar
- Compact dimensions of 231 x 223 x 145 mm
- Ceramic pistons with 18 mm piston width
- Low pulsation design for smooth operation
- Internal seal cooling for extended service life
- Suitable for pressure washing, vehicle wash and industrial cleaning systems
- Manufactured in Japan
- Wide range of spare parts and service kits available.
| Model | Max Flow Rate | Max Pressure | Minimum Power Required | RPM | Weight |
|---|---|---|---|---|---|
| CAT 3CP1130 | 9.1 LPM | 150 Bar | 2.7 kW / 3.6 HP | 1,725 RPM | 6.70 kg |
| CAT 3CP1140 | 13.6 LPM | 150 Bar | 4.0 kW / 5.5 HP | 1,725 RPM | 6.70 kg |
| CAT 3CP1120 | 16.0 LPM | 150 Bar | 4.9 kW / 6.5 HP | 1,725 RPM | 6.70 kg |
