GrippaReel V1 - Blue Electric & Manual WFP Low Pressure Steel Water Reel

"Please note the GrippaReels are proving to be extremely popular currently and we are thus building each reel to order. If you need your reel urgently, please call to confirm lead time"

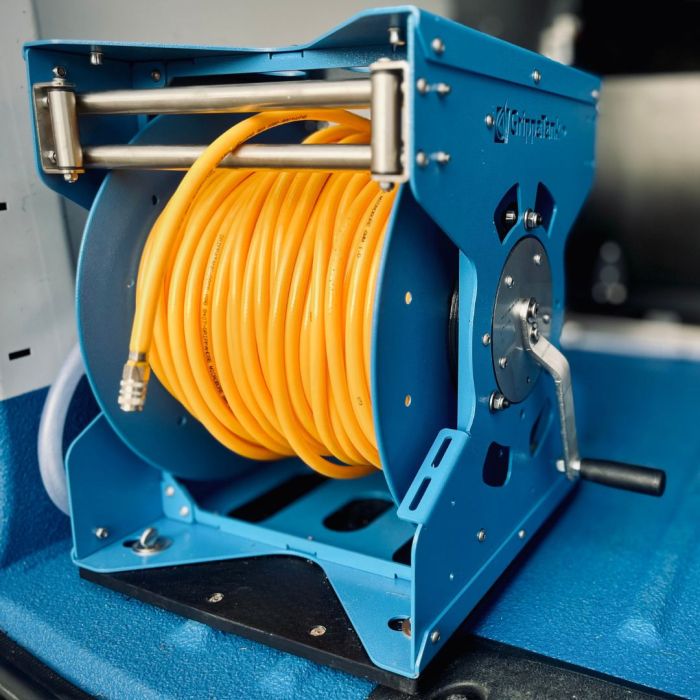

NOTE PICTURE IS FOR ILLUSTRATON PURPOSES ONLY - THE GRIPPAREEL VS1 BLUE COMES IN FULL BLUE FINISH.

The newest addition to the GrippaTank product range, the GrippaREEL is 9 years in the making.

Based purely on an extensive customer wish list, along with the wealth of experience we have gained on the thousands of installations carried out thus far, it has been specifically designed to be used in conjunction with our GrippaMAX cleaning system.  The various options of hose reels have been tested by our product testers over the past year, with active ongoing development based on feedback having been received.

This product is intended to make the cleaning operatives life easier and less tiring, as well as making it safer.

Packed with features, our range includes:

•  Available in powder coated steel (select blue or black) or stainless steel.

• Fixed floor mounted reel which can be easily removed without tools within seconds (*if quick release base is purchased)!

• Stackable as standard - no additional racking required. Using the revolutionary StakaReel technology as standard, the reels simply slot on top of each other, giving you much needed space on demand.  Stack 2 manual, 2 electric, or one of each

• Built from a combination of high-quality steel components, it’s not only strong and durable but lightweight and easy to handle

• Available as either hand cranked, or chainless gear box driven electric versions, the GH-VS1 range can be used for low pressure (up to 300psi) with ½” 50 metre hose and 100 metres of 8mm or 6mm hose.

•  The chainless electric motor has been specifically concealed as part of the core product design, making it safer, more effective and efficient - no additional floor space is taken up due to the clever compact gearbox design.

• Electric reels come with the option of a remote control or wired control system  (Remote control is limited to 50mtrs 'line of sight operation - this is a safety feature)

• Electric reels include intelligent power assisted pull out, which matches the speed of the operator pulling out the unit.

• The chainless motor is multi-directional - not just rewind.

• Variable Speed Control both on the wired and remote versions for the electric reels.

• Electric reels fitted as standard with Safety shutoff in keeping with the working machinery act.

• Easily Serviceable - all parts can be easily replaced on site

Electic Reels supplied with an Emergency Handle Assembly (in case of power failure)

Electric reels are supplied with 2 metres of positive and negative cable along with connectors, fuse holder, and fuse to connect onto your existing battery terminals.  Please note: you will require some basic electronic tools (wire cutters and a crimping tool) and installation knowledge to self install these units into your specific setup. Alternatively contact us today for a quote  to have our engineers install the GrippaReel installed into one of our 3 service centres in the UK, or on your driveway.

Our GrippaReels are designed to be low on power consumption with an average power draw of 3 - 4 amps.

• Upgradeable - as with all GrippaTank products, our hose reels can be updated (to include Stainless Steel roller guides) or converted to electric at a later date (when returned to GrippaTank)

• Weights;    Powder Coated Mildsteel: 17kg (hand cranked) or 26kg (electric) ;     Stainless Steel: 15.6kg (hand cranked) or 24.6kg (electric)

• Dimensions:    Depth = 400mm,   Height = 445mm (+15mm QR base),   Width 350mm (bare reel)  or 450mm (for electric unit with plumbing) or 600mm (with handle and plumbing)

NB:- Note the external dimensions shown are the absolute external dimensions including the handle and plumbing connections. Even with these external dimensions, the reels will .easily sit side by side with over 250mm gap between the end of each of the handles in a new shape Vauxhall Vivaro by way of an example.

NB: "If stacking hose reels on top of each other, we do not recommend using the quick release base for the bottom reel, but rather to bolt the bottom reel onto the vehicle. The top stacking reel can still be quick released, if a quick release base is fitted to the top of the bottom reel."

What makes our GrippaReel so unique? - Check out our product Comparison Sheet below:

Additional Information

•     Our default courier service is DPD local - UK Mainland - Tracked Service with a 1-hour delivery text alert (9 - 6pm) - 6.98 + vat or over £75 + vat FREE to UK Mainland.
•      We also ship larger parcels out with Fedex - UK Mainland - Tracked Service (9 - 6pm) - 9.98 + vat or over £75 + vat FREE to UK Mainland

• Premium services for urgent deliveries (pre-10, pre-12, and saturday priority shipping) are available on request, please call us on 01223 790049 for a quote.

• *PLEASE NOTE SOME POSTCODES WILL BE HAVE AN ADDITIONAL SHIPPING CHARGE - INCLUDING REMOTE AREAS AND SOME SCOTTISH LOCATIONS.

• 3-5 working day delivery for pallets within UK Mainland. Overseas delivery lead time depend on the destination.

  UK Mainland - 1-2 Working Day Service	90.00 + vat if order is under £75 + vat
  Overseas pricing upon request	POA

• If your delivery requirements are very urgent, we can offer a same day delivery service across the UK and some parts of Europe. Call us for your bespoke quotation on 01223 790049.
